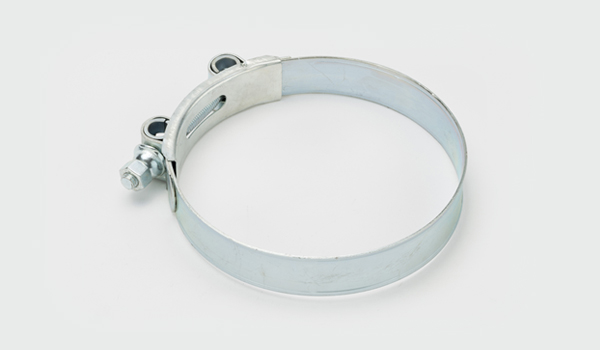

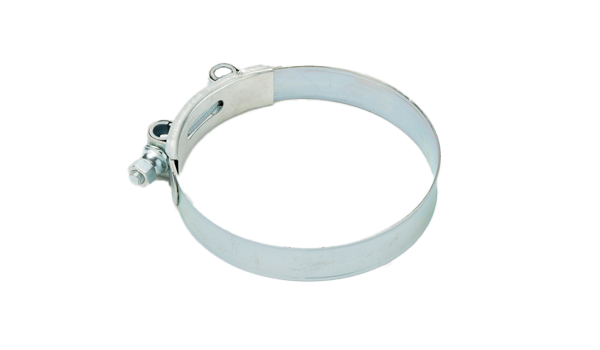

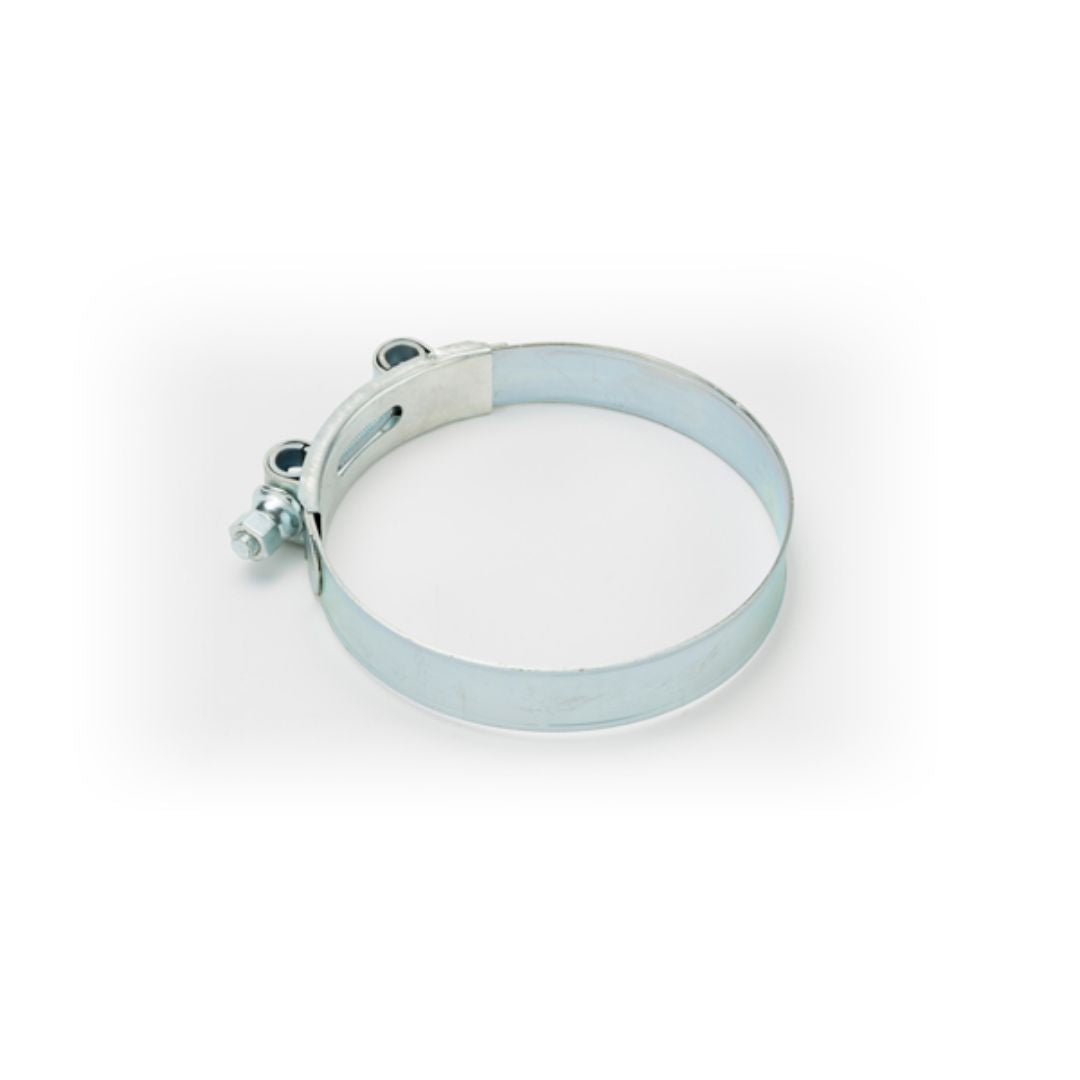

This Superex Heavy Duty Steel Double Bolt Hose Clamp has a 20mm bandwidth and a double band with a 2mm thickness. The clamp consists of two high strength 8.8 grade socket head bolts which allow for easy installation on hoses and pipes, providing a high clamping force.

The clamp has two pairs of solid trunnions ensuring torque is well distributed across the clamps double band resulting in higher breaking torque and excellent tensile strength. The clamp also has two bridges welded to the clamp which provides extra strength and optimal hose protection.

Manufactured in mild steel and zinc plated.

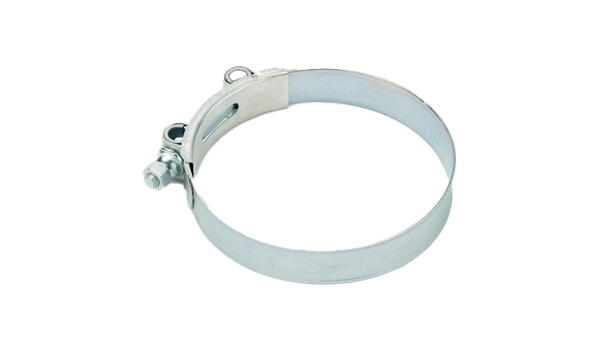

SUPEREX HEAVY DUTY STEEL HOSE CLAMP
Dia Size (D)	Band Width (W)	Band Thickness (T)	Bolt Size (L)	Quantity / Box
(mm)	(mm)	(mm)	*(MxP) Length (mm)**	Quantity / Box
17-19	18	0.6	M5 x 40	200
20-22				200
23-25				200
26-28				200
29-31	20	0.8	M6 x 50	100
32-35				100
36-39				100
40-43				100
44-47	22	1.2	M7 x 60	75
48-51				75
52-55				50
56-59				50
60-63				50
64-67				50
68-73	24	1.5	M8 x 75	40
74-79				30
80-85				30
86-91				30
92-97				25
98-103				25
104-112			M8 x 85	25
113-121				20
122-130				20
131-139	26	1.5	M10 x 95	25
140-148				25
149-161				20
162-174			M10 x 105	20
175-187				20
188-200				15
201-213				15
214-226				15
227-239				15
240-252				15
